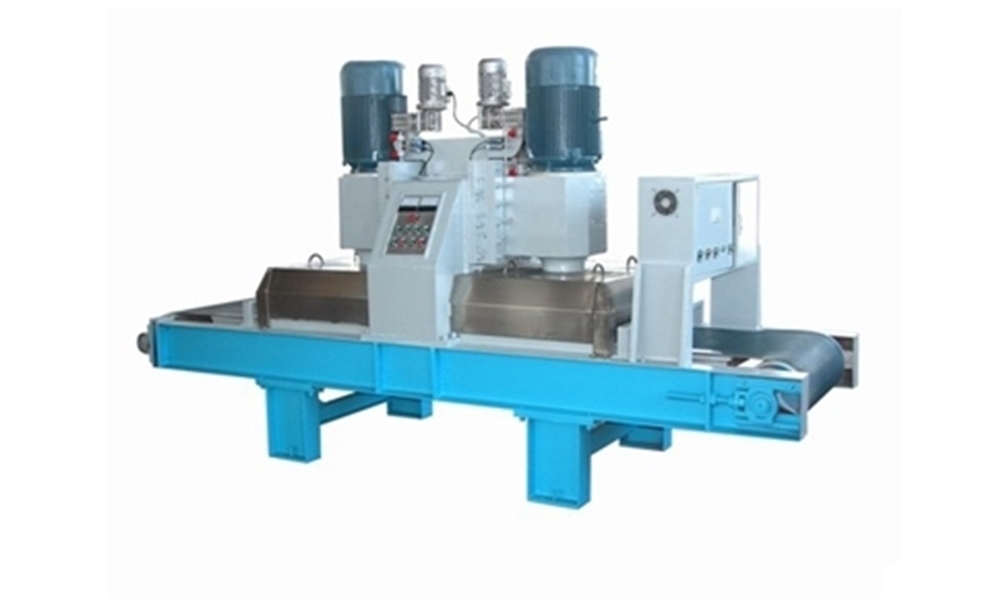

Name：OMC-4 Head Calibrating Machine
Details
Calibrating machine is the leveling equipment for stone slab production line. The slab is calibrated to have same thickness by this machine and then polished by polishing machine.| Model | OMC-DH4 | Customized Order |
| Calibrating head Quan | 4 | |
| Calibrating Width | 600-800mm | up to 1800mm |
| Calibrating Depth | 10-40mm | up to 150mm |
| Calibrating speed | 0.5-2m/min | 0.5-2m/min |
| Motor Power for up-down | 0.37*4= 1.48kw | 0.37*4= 1.48kw |
| Motor power for moving | 2.2 kw | 2.2 kw |
| Main Motor Power | 18.5*4=74kw | According to design |
| Total Power | 77.68kw | According to design |
| Dimension | 6200*1600*2000mm | According to design |
| Weight | 5000kgs | According to design |
|
